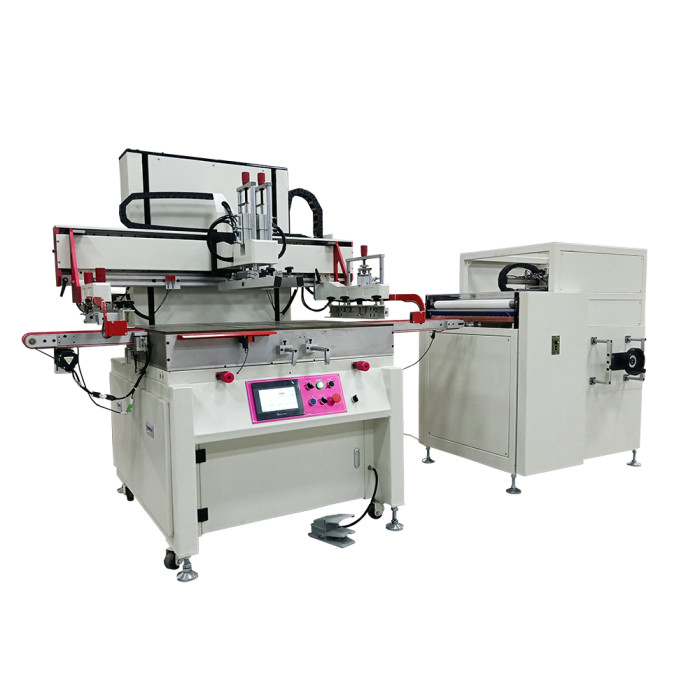

Automatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum Plates

Automatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum Plates

Automatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum Plates
Automatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum PlatesAutomatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum PlatesAutomatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum PlatesAutomatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum PlatesAutomatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum Plates
This automatic loading flat screen printer is suitable for high-precision positioning printing of wood boards, aluminum substrates, PCB circuit boards, home appliance glass, ABS, computer keyboards, plastic hardware, membrane switches, key nameplates and other products.
CategoriesAutomatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-4060SF-A
ModelTX-4060SF-A
Max printing area400*600mm
Table size750*1000mm
Printing Speed1000 pcs/h
Max screen frame800*1200mm
Work-Piece Thickness≤30mm
Power SupplyAC380V/3.5KW
Machine Dimension1520*1200*1740mm
Machine Weight1000KG
Printing pressure0.5-0.6Mpa
FOB portNingbo
Terms of PaymentT/T
Download
Update TimeDec 14,2024
Detail Information
Introduction
Fully automatic CCD screen printing machine
This automatic loading flat screen printing machine is suitable for high-precision positioning printing of wood boards, aluminum substrates, PCB circuit boards, home appliance glass, ABS, computer keyboards, plastic hardware, membrane switches, key nameplates and other products.


Main performance
1. Automatic feeding, automatic dust removal, and automatic positioning printing.
2. Adopting PLC control circuit and touch screen operation panel, it is sensitive to operation and has complete functions. The electrical and pneumatic components are all international brands, with stable product performance and reliable quality;
3. The vertical lifting is driven by variable frequency motor and controlled by inverter, with long life and stable operation;
4. The printing movement is driven by motor, variable frequency speed regulation, and the scraper can be switched freely;
5. The printing platform has high precision, scientific structure, small air resistance, strong vacuum suction force during operation, and the first printing platform adjustment mechanism to solve the problem of difficulty in adjusting the thickness of the substrate of similar models;
6. The first mechanical synchronous off-grid mechanism of similar models improves the printing suitability of the whole machine. Equipped with multiple protection systems to ensure safe operation.
Specification
Model
TX-4060SF-A
Table Size
750*1000mm
Substrate Thickness
0~30mm
Max Printing Area
400*600mm
Min Printing Area
250*300mm
Printing speed
1000pcs/h
Max frame size
800*1200mm
Conveyor belt size
L2130*W 130mm
Loader size
length 1080*width 1200*1300mm
Loading bin size
length 800*width 600*lifting height 350mm
Printing precision
±0.03 ㎜
Power Consumption
AC380V/3.5KW
Printing pressure
0.5-0.6Mpa
Machine Dimension
1520*1200*1740mm
Machine Weight
1000KG
Machine Details
Printing samples
Membrane switch
Metal nameplate
mobile phone screen
Aluminum plate
Flexible circuit board
   Printed circuit board
TX-4060SF-A Parameters
