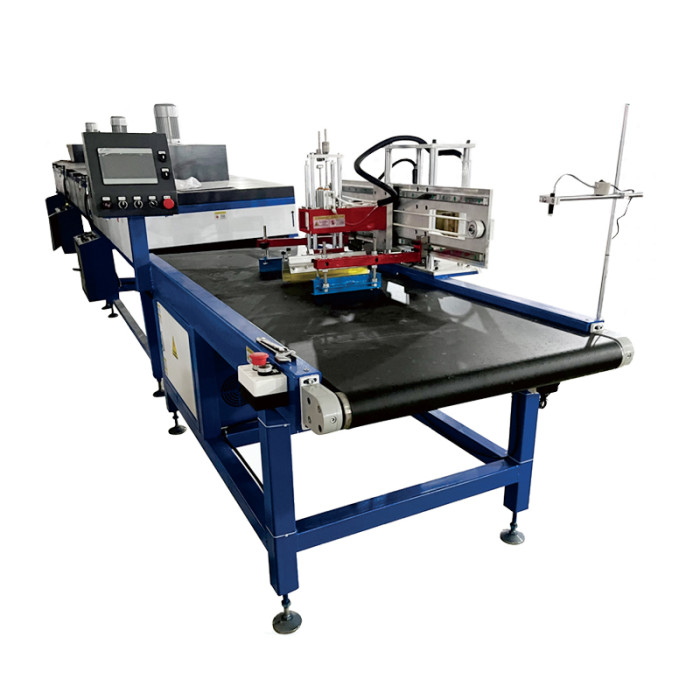

Paper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS with Conveyor Belt

Paper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS with Conveyor Belt

Paper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS  with Conveyor Belt
Paper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS  with Conveyor BeltPaper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS  with Conveyor BeltPaper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS  with Conveyor BeltPaper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS  with Conveyor BeltPaper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS  with Conveyor Belt
This conveyor-type flat screen printer is suitable for single-color screen printing of various flat products such as paper , non-woven bags, cardboard fabrics, etc.
CategoriesAutomatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-5060SS / 5080SS
Maximum printing500 * 600mm / 500* 800mm
Printing thickness≤ 50 mm
Printing pressure5 ~ 7bar
Mainframe length * conveyor belt width2000*730mm / 2600*730mm
Voltage / Power220V or 380V 1.15KW/1.75KW
Maximum screen frame700*900mm / 700*1100mm
Maximum number of prints1500 pcs/h
Adsorption effectOptional
Drying section power6KW/section
FOB portShanghia or Ningbo
Terms of PaymentWestern Union, T/T
Update TimeOct 13,2024
Detail Information
Introduction    Conveyor type flat screen printing machine

Application : This conveyor-type flat screen printer is suitable for single-color screen printing of various flat products such as paper , non-woven bags, cardboard fabrics, etc.

Main performance

①Use imported brand PLC programming control and touch screen human-machine control.
②The printing motor is controlled by Xinjie servo motor, which runs smoothly and efficiently.
③The belt conveyor uses Xinjie servo motor to control the stroke, and the start and stop positions are accurate and smooth.
④Pneumatic lifting of mesh plate, pneumatic components of well-known brands .
⑤ Compressed air filtration device to purify the air intake source of the equipment and increase the service life of pneumatic components.
⑥Independent printing and ink return speed control , touch screen digital visualization control.
⑦The touch screen has a counting function , and the production capacity reminder alarm can be set according to the printing quantity
⑧ Single knife printing or ink return printing mode can be selected according to the product.
⑨ Printing can use ink, water slurry , glue, etc. as materials for printing patterns .
Specification
Model
TX-5060SS
TX-5080SS
Printing thickness
≤50mm
≤50mm
Max printing size
500*600mm
500*800mm
Pressure
5~7bar
5~7bar
screen printer’s length
* belt width
2000*730mm
2600*730mm
Voltage/power
220V or 380V
1.15KW
220V or 380V
1.75KW
Max frame size
700*900mm
700*1100mm
Max printing speed
1500pcs/h
1500pcs/h
Drying section size
Each section is 2 meters (heating area is 1 meter)
Drying section power
6KW/section

Details image




Printing sample
