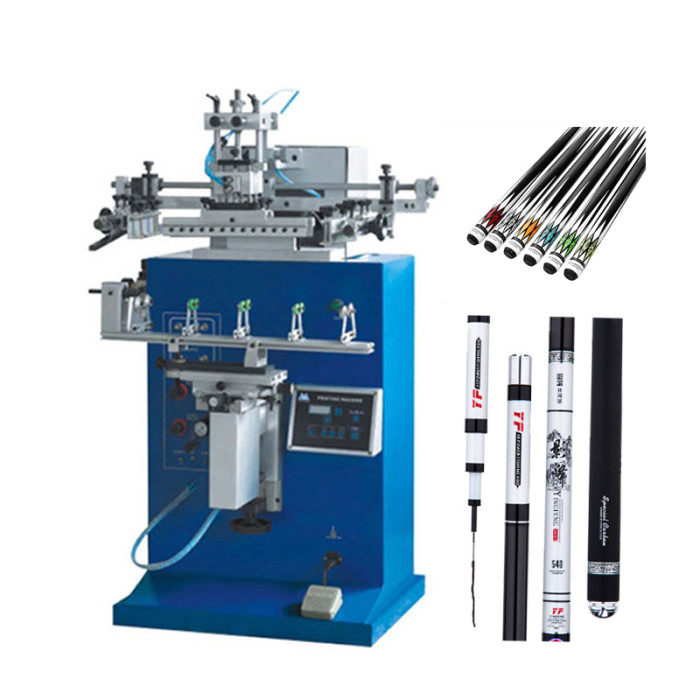

TAOXING Fishing Rod and Long Round Tube Screen Printing Machine TX-125G
TAOXING Fishing Rod and Long Round Tube Screen Printing Machine TX-125G
Baseball Bat cylindrical Screen Printer is suitable for surface printing on cylindrical objects and oval , such as tennis table tube, plastic tube, fish long pole etc
| Printing color | single color |
|---|---|
| Maximum Printing Area | 400*100mm |
| Max printing speed | 1000 pcs/h |
| Maximum Print Area Round | Ø 30mm |
| Max size of frame | 550*300mm |
| Max. workpiece height | ≤800mm |
| Air consumption | 6 bars |
| Application area | tennis table tube, plastic tube, fish long pole et |
| Dimensions(L*W*H) | 73x58x128cm |
| Weight | 100KG |
| Electric Source: | 220V 50HZ 20W |
Detail Information
Introductions
Application
This long tube curved surface screen printer is suitable for printing products with a longer circumference, such as golf clubs, fishing rods, water pipes, etc., with high-precision printing of surface patterns and texts.
Features
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3. Auto ink squeegeeing and reclaiming, worktable rising and down to assure easy operation and consistent print quality;
4.Printing stroke and speed are adjustable to meet different requirements;
5.auto-balance scraper assures the equalization of printing pressure.
6.Fine adjustment available on worktable’s plane angle and frame to front/rear, left/right and up/down with high printing precision, which is convenient and quick to tune.
7.The scraper can be raised independently, makes it convenient and easy to change and clean the frame.
Main parameters
Maximum Print Area Round: Ø30mm
Maximum Printing Area: 400*100mm
Max Size of Frame: 550*300mm
Max. workpiece height: ≤800mm
Printing Cycle Speed: 1000pcs/hour
Electric Source: 220V 50Hz 20W
Air Pressure: 6Ba
Dimensions: 73x58x128cm
Weight: 100KG
Detail Images
Printing Samples
