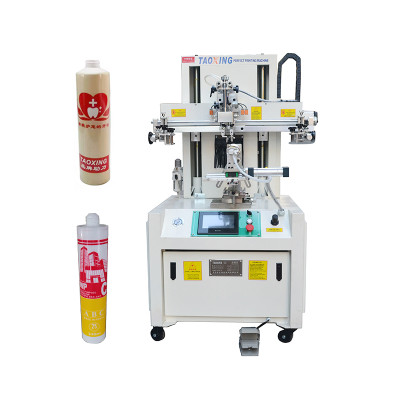

TAOXING Servo Curved Screen Printing Machine TX-500SF For Round Products

TAOXING Servo Curved Screen Printing Machine TX-500SF For Round Products

TAOXING Servo Curved Screen Printing Machine TX-500SF For Round Products
TAOXING Servo Curved Screen Printing Machine TX-500SF For Round ProductsTAOXING Servo Curved Screen Printing Machine TX-500SF For Round ProductsTAOXING Servo Curved Screen Printing Machine TX-500SF For Round ProductsTAOXING Servo Curved Screen Printing Machine TX-500SF For Round ProductsTAOXING Servo Curved Screen Printing Machine TX-500SF For Round Products
Our cylindrical screen printing machine are also known as circular or cylindrical screen printing machine. Which are well designed
for round, oval, square and other special shape containers curved surface printing, available to print on plastic, glass and metal
bottles. The cylindrical screen printing machines are widely used for industries of daily chemical, food, beverage, pharmaceutical,
chemical, personalized water bottles business, cosmetic bottles manufacture, etc.
CategoriesCurved Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-500SF
Max printing area500*200mm
Substrate Diameter≤160mm
Printing Speed800pcs/hour
Max screen frame700*350mm
Max Printing length300mm
Machine Weight272kg
Power Supply220V,50/60/Hz/100W
Machine DimensionL1040*W990*H1700mm
Air pressure4-6kgf/cm2
Application AreasCups, bottles, cans, metal pipes, automobile pisto
FOB portShanghai or Ningbo
Terms of PaymentT/T
Download
Update TimeDec 14,2024
Detail Information

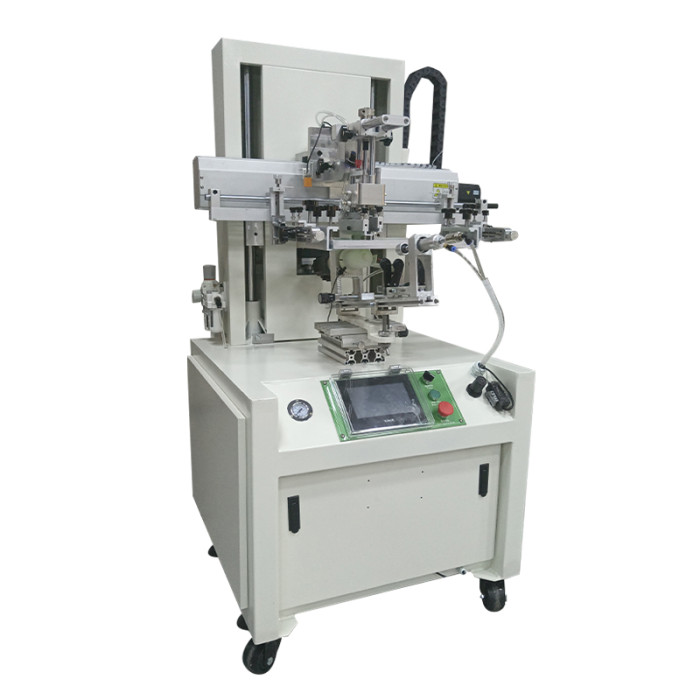

Servo curved screen printing machine
Servo curved screen printing machine
Introduction  TX-500SF Servo curved screen printing machine
Servo curved screen printing machine
This servo curved screen printing machine is suitable for high-precision printing of various cosmetic eyebrow pencils, containers, pharmaceutical containers, food containers, electronic devices, toys, cabinets and other surface patterns and text.

Main parameters


Model :  TX-500SF
Max Printing area: 200*500mm
Air pressure:  5 bar
Rated voltage/Power: 220V/50HZ/1000W
Max printing speed: 800-1000(PCS/H)
Max screen frame: 300*600mm
printing size:  Φ150*200mm
Printing length:  ≤250mm
Dimension Size : 1150*950*1600mm
Gross weight : 272(KG)



Features:
Compared with ordinary curved surface color registration, it is more convenient that it does not require positioning points, and the infrared light eye has higher positioning and color registration accuracy, which is suitable for enterprise product development and small batch printing.

This screen printing machine is available to print on plastic, glass and metal goods, like cups, plastic bottles, glass bottles, pistons, bottle ROPP caps, jars, plastic flexible cosmetic soft tubes and so on. Widely used for industries of daily chemical, food,beverage, pharmaceutical, chemical, personalized water bottle business, cosmetic bottle manufacture, etc.
Main performance
1. PLC programming, touching screen, simple to operate, easy to use
 2. Built in digitalcounts for production output
 3. Facilitate to placement of the productbenefit from special design famous air cylinders
 4. Servo motor drive rotating and printing head ensure high precision
 5. Self-balance scraper technology and ink cover blade
 6. Printing Strokeand rotation by digital adjustments, printing speed controllable.
 7. Convenient operating the height of the printing beam by hand wheel.
 8. Easy to disassemble and cleaning the screen plate due to the independent design of lifting printing head including scraper
     and squeegee;
 9. Quality photoelectricity sensor and perfect fault self-detect
 10. Metal structure,running steady, foot switch for starter.
Details pictutre
Printing samples
