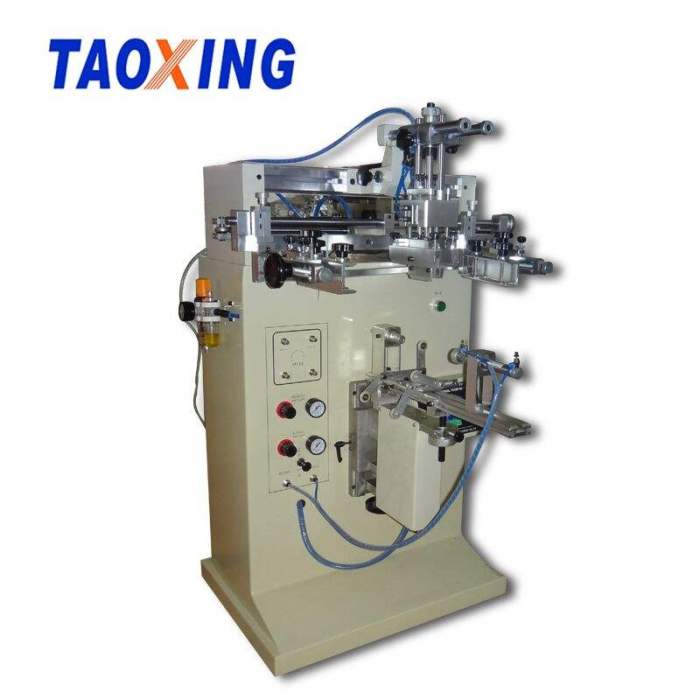

Semi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and Bottles

Semi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and Bottles

Semi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and Bottles
Semi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and BottlesSemi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and BottlesSemi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and BottlesSemi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and BottlesSemi-automatic Cylindrical Screen Printing Machine TX-400S for Cups and Bottles
Semi-automatic cylindrical printing machine is suitable for surface printing on cylindrical objects and oval , such as syringe barrel, milk tea cups, glass bottle, blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, gas cylinder, milk tea cups, jars etc.
CategoriesCurved Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-400S
Max. Printing Areaφ 120mm
Max Print Area Oval350mm Arc Length
Max print Length250mm
Max. screen frame size650*320mm
Printing Cycle Speed800pcs/hour
Air pressure5-6Bar
Applicationcup,bottle, tube, Steel cylinder, bucket,
DimensionsL94*W83*H135cm
Weight180KG
Voltage220V/110V
FOB portNingbo
Terms of PaymentD/P, T/T
Update TimeOct 13,2024
Detail Information
Introduction       Semi-automatic Cylindrical screen printing machine
UV Curing Drying Mchine
Application for Semi Auto Cylindrical Screen Printing Machine

Semi-automatic cylindrical printing machine is suitable for surface printing on cylindrical objects and oval , such as syringe barrel, milk tea cups, glass bottle, blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, gas cylinder, milk tea cups, jars etc
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
UV Curing Dryer

Main parameters


Model:TX-400s
Maximum Print Area Round:  Ø120 mm
Maximum Print Area Oval: 350 mm Arc Length
Maximum print Length: 250 mm
Maximum Screen Frame Size:650*320 mm
Printing Cycle Speed: 1200 pcs /hour
Electric Source: 110V / 220V 50-60Hz 60W
Air Pressure:5-6 Bar
Dimensions: 96x90x138cm
Weight: 120KG
Features and Performance
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3. Auto ink squeegeeing and reclaiming, worktable rising and down to assure easy operation and consistent print quality;
4.Printing stroke and speed are adjustable to meet different requirements;
5.auto-balance scraper assures the equalization of printing pressure.
6.Fine adjustment available on worktable’s plane angle and frame to front/rear, left/right and up/down with high printing precision, which is convenient and quick to tune.
7.The scraper can be raised independently, makes it convenient and easy to change and clean the frame.
Appearance pictures
Application
Seal pot
Seal Pot
Cosmetic bottles
Cosmetic bottles
Plastic flower pots
Plastic flower pots
