Screen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot Stamping

Screen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot Stamping

Screen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot Stamping
Screen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot StampingScreen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot StampingScreen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot StampingScreen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot StampingScreen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot Stamping
This fully automatic cold foil machine is suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
CategoriesAutomatic Hot Stamping Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-UV1160-190
Maximum stamping width66CM
Hot stamping speed0~15m/min
Stamping temperature60~140℃
Total power6KW
Air pressure0~8 Mpa
Power supply380V/50HZ
Total weight420KG
External dimensions200*120*128cm
FOB portNingbo
Terms of PaymentWestern Union, T/T
Update TimeOct 13,2024
Detail Information

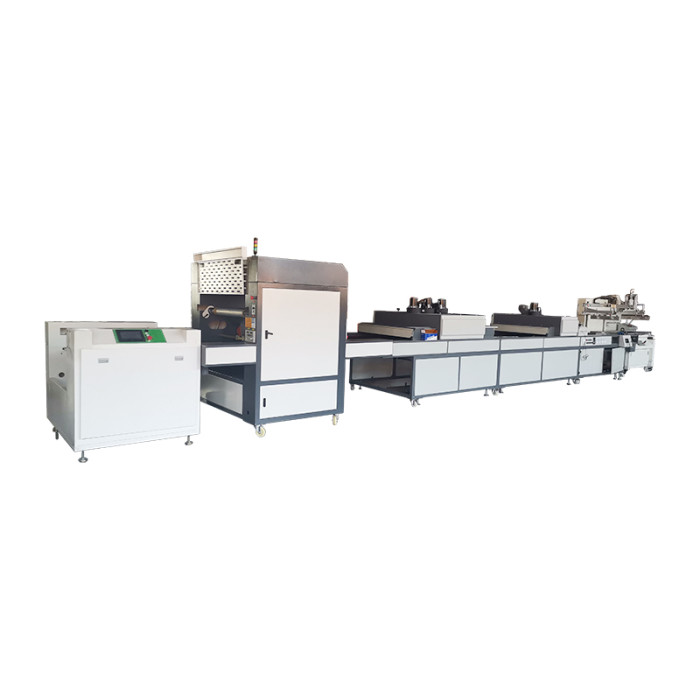

Introduction    Screen printing UV hot stamping production line

Fully automatic CCD screen printing machine
Suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.

Main performance characteristics

1. Widely used in ordinary aluminum foil and special cold stamping aluminum foil;
2. The equipment uses a fully automatic servo motor step-skipping function to save aluminum foil materials;
3. The hot stamping pattern can be hot stamped multiple times and set to hot stamp continuously;
4. Can be connected to various semi-automatic and fully automatic screen printing machine production lines;
5. Cold stamping speed: 0-2000 sheets per hour;
6. This cold stamping machine relies on the printing screen hot stamping varnish to be completely cured before heating, and hot stamping does not require secondary UV curing;
7. It can also be used as a partial UV laser embossing transfer film.
Specification
Product name:
Semi-automatic flat screen printing machine

Machine Model: TX - 70100ST​
Printing thickness: ≤ 50 mm
Printing size: 700*1000 mm
Printing pressure: 4.0~6.0kfg/ c㎡
Platform size: 800*1100 mm
Voltage/Power: 380V/50HZ /4.5KW
Maximum screen frame: 1000*1 40 0mm
Machine size: 1760*1350*1750mm
Printing speed: 800 pcs/h
Gross Weight:  950 (KG)
Product name:
Fully automatic servo step-by-step cold stamping machine

Machine Model: TX-UV1160-190
Usage:  UV screen printing hot stamping
Hot stamping wide: ≤1050mm
Hot stamping speed: 0-15m/min
Hot stamping temperature: 60-140℃
Total Power: 8KW
Pressure: 0-8Mpa
Power supply" 380V/50Hz
Total weight:  750Kg
Dimensions:  2300X1660X1750mm
Product name:
UV multifunctional curing machine

Machine Model: TX-UV1070
Belt width: 1000mm
UV lamp power :8.0KW*4pcs
Overall length: 7000mm
Power: 380V/12.8KW
Conveyor belt speed: 0-25m/min
Outer diameter: 130*145cm
Machine weight: 400KG

Details image

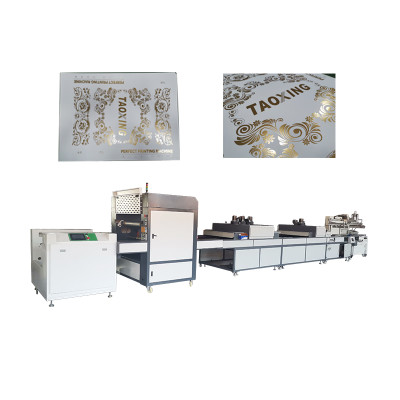

Printing sample
