High-precision UV Screen Printing Fully Automatic Cold Foil Machine

High-precision UV Screen Printing Fully Automatic Cold Foil Machine

High-precision UV Screen Printing Fully Automatic Cold Foil Machine
High-precision UV Screen Printing Fully Automatic Cold Foil MachineHigh-precision UV Screen Printing Fully Automatic Cold Foil MachineHigh-precision UV Screen Printing Fully Automatic Cold Foil MachineHigh-precision UV Screen Printing Fully Automatic Cold Foil MachineHigh-precision UV Screen Printing Fully Automatic Cold Foil Machine
This fully automatic cold foil machine is suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
CategoriesAutomatic Hot Stamping Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-UV1160-190
Maximum stamping width66CM
Hot stamping speed0~15m/min
Stamping temperature60~140℃
Total power6KW
Air pressure0~8 Mpa
Power supply380V/50HZ
Total weight420KG
External dimensions200*120*128cm
FOB portNingbo
Terms of PaymentWestern Union, T/T
Update TimeOct 13,2024
Detail Information
Introduction    High-precision UV screen printing fully automatic cold foil machine
Fully automatic CCD screen printing machine
Suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.

Main performance characteristics

1. Widely used in ordinary aluminum foil and special cold stamping aluminum foil;
2. The equipment uses a fully automatic servo motor step-skipping function to save aluminum foil materials;
3. The hot stamping pattern can be hot stamped multiple times and set to hot stamp continuously;
4. Can be connected to various semi-automatic and fully automatic screen printing machine production lines;
5. Cold stamping speed: 0-2000 sheets per hour;
6. This cold stamping machine relies on the printing screen hot stamping varnish to be completely cured before heating, and hot stamping does not require secondary UV curing;
7. It can also be used as a partial UV laser embossing transfer film.
Specification
Product name:
Semi-automatic flat screen printing machine

Machine Model: TX - 70100ST​
Printing thickness: ≤ 50 mm
Printing size: 700*1000 mm
Printing pressure: 4.0~6.0kfg/ c㎡
Platform size: 800*1100 mm
Voltage/Power: 380V/50HZ /4.5KW
Maximum screen frame: 1000*1 40 0mm
Machine size: 1760*1350*1750mm
Printing speed: 800 pcs/h
Gross Weight:  950 (KG)
Product name:
Fully automatic servo step-by-step cold stamping machine

Machine Model: TX-UV1160-190
Usage:  UV screen printing hot stamping
Hot stamping wide: ≤1050mm
Hot stamping speed: 0-15m/min
Hot stamping temperature: 60-140℃
Total Power: 8KW
Pressure: 0-8Mpa
Power supply" 380V/50Hz
Total weight:  750Kg
Dimensions:  2300X1660X1750mm
Product name:
UV multifunctional curing machine

Machine Model: TX-UV1070
Belt width: 1000mm
UV lamp power :8.0KW*4pcs
Overall length: 7000mm
Power: 380V/12.8KW
Conveyor belt speed: 0-25m/min
Outer diameter: 130*145cm
Machine weight: 400KG

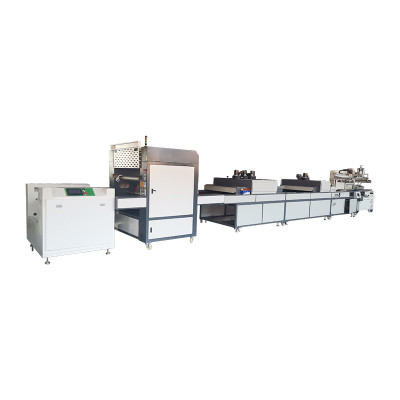

Details image

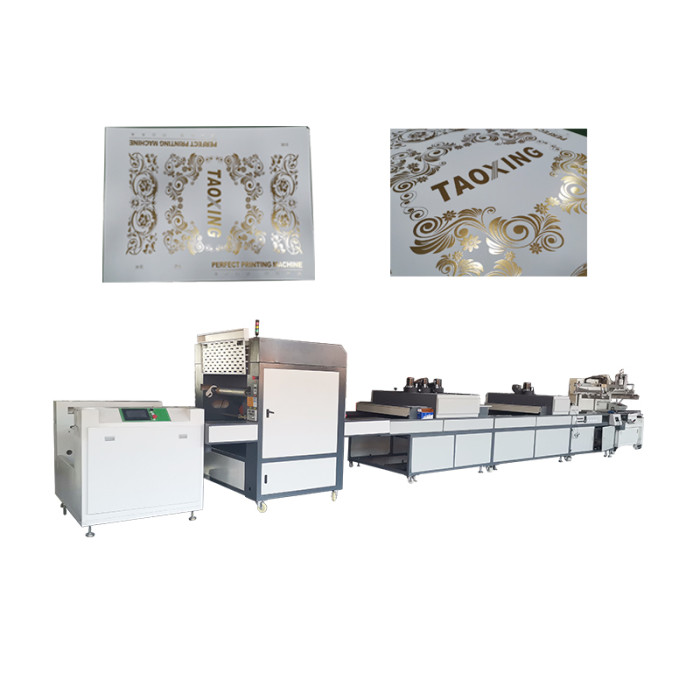

Printing sample
