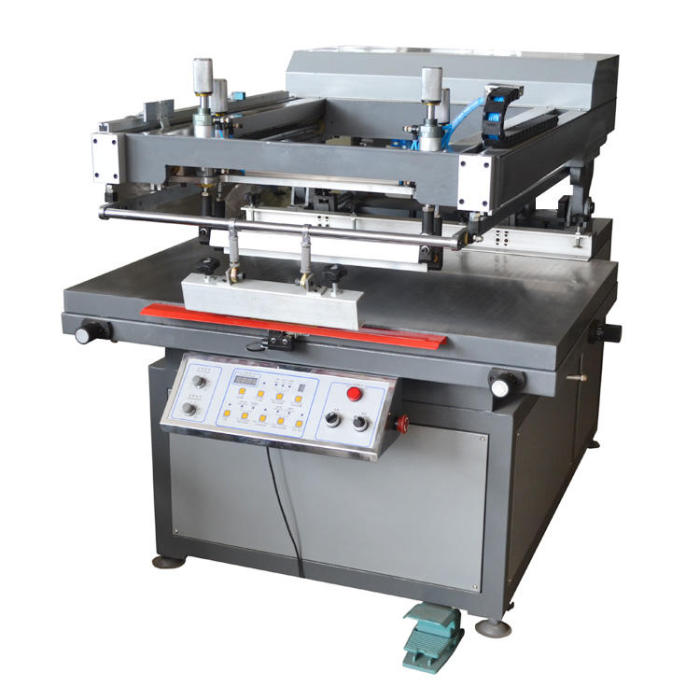

Semi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine TX-XB7010 for Paper Box

Semi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine TX-XB7010 for Paper Box

Semi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine  TX-XB7010 for Paper Box
Semi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine  TX-XB7010 for Paper BoxSemi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine  TX-XB7010 for Paper BoxSemi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine  TX-XB7010 for Paper BoxSemi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine  TX-XB7010 for Paper BoxSemi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine  TX-XB7010 for Paper Box
This TX-7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
CategoriesSemi-Automatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-XB7010
Printing color1 color
Operating modesemi-automatic
Printing speed1000 pcs/h
Printing size700*1000mm
Max Frame Size1000*1400mm
Table size800*1100mm
Power2.2KW/220V
Air Pressure0.5-0.6Mpa
Outside Dimension1900×1450×1400mm
Weight500KG
Printing Thickness≤30mm
FOB portShanghai or Ningbo
Terms of PaymentT/T
Update TimeOct 13,2024
Detail Information
Introduction of  Oblique Arm Flat Screen Printing Machine
Fully automatic CCD screen printing machine
Application:

This TX-XB7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
Features
1).Oblique arm structure. Independent drive of printing arm.
2).Vacuum stainless steel printing table and powerful vacuum pump.
3).Micro registration handle in horizontal and vertical direction make more precision and convenient color register.
4).Variable frequency drive system drives the printing head, respectively digital control of printing and ink reclaiming speed.
Specification of  Oblique Arm Flat Screen Printing Machine
Model
TX-XB70100
Table Size
800x1100mm
Printing Thickness
30 mm
Max Printing Area
700×1000mm
Printing speed
600 pcs/hour
Maximum screen frame size
1000*1400mm
Maximum print Length:
1000mm
Worktable Displacement
±5mm
Power Consumption
220V/50HZ /2.1KW
Printing pressure
0.5-0.6Mpa
Machine Dimension
1900×1450×1400mm
Machine Weight
500KG
Application of Oblique Arm Flat Screen Printing Machine
