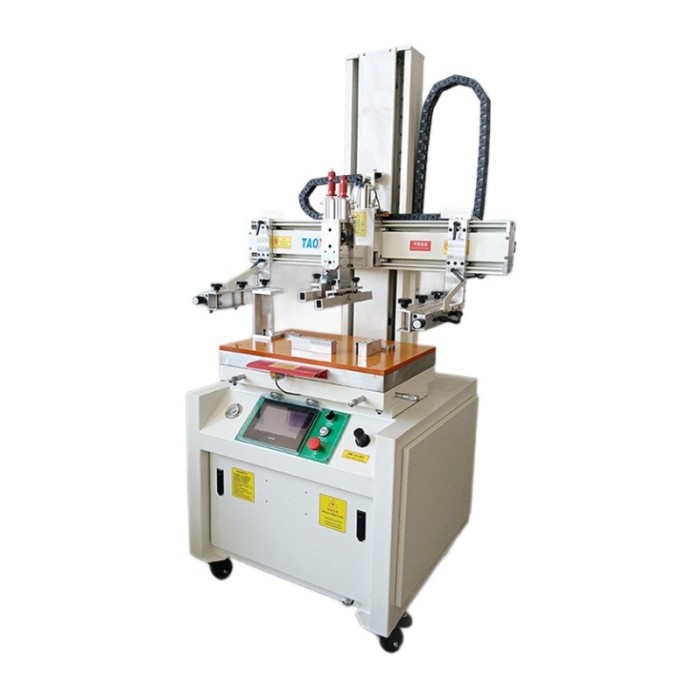

Heightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal Chassis

Heightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal Chassis

Heightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal Chassis
Heightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal ChassisHeightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal ChassisHeightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal ChassisHeightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal ChassisHeightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal Chassis
It is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.
CategoriesSemi-Automatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-3050SF-T
Printing color1 color
Operating modesemi-automatic
Printing speed1000pcs/h
Maximum mesh frame size400*650mm
Printing size250*400mm
Voltage / power220V/2.1KW
Dimensions900*600*1850mm
Printing Thickness25mm
Gross weight250(KG)
FOB portShanghai or Ningbo
Terms of PaymentT/T
Update TimeOct 13,2024
Detail Information
Application
This servo flat screen printing machine is suitable for logo and logo printing on heightened metal chassis and plastic storage boxes.
Specifications
Model:  TX-3050SF-T
Printing area:  250*400mm
Platform size: 300*500mm
Printing thickness: ≤25mm
Printing accuracy: ±0.02mm
Maximum screen frame: 400*650mm
Printing pressure: 0.5-0.7Mpa
Power supply: 220V/2.0KW
Maximum number of idling prints: 1000 (PCS/H)
Gross weight: 250(KG)
Machine size: 900*600*1650mm
Packing size: 850*650*1800mm
Features
① Vertical structure, frequency conversion electric drive is used for vertical lifting of screen plate, and frequency conversion electric drive is used for left and right action of printing head.
② Single chip microcomputer control circuit, printing and screen lifting using independent drive source.
③ Pneumatic control printing tool carrier lifting, photoelectric eye control stroke, independent adjustment.
④ Set up manual/semi-automatic/automatic three modes, printing indirect time digital control.
⑤Independently designed head lifting device, scraper/return knife, screen loading and unloading and screen cleaning is convenient.
⑥ Double guide post left and right net clip arm, and installation of plate distance adjustment device, easy to adjust.
⑦With a thimble cylinder, with the manipulator to take material.
Machine Details Display

Printing samples
