TAOXING Flat Flame Treatment Machine TX-HY800P For Flat Plastic Parts Printing Preprocessing

TAOXING Flat Flame Treatment Machine TX-HY800P For Flat Plastic Parts Printing Preprocessing

TAOXING  Flat Flame Treatment Machine TX-HY800P  For  Flat Plastic Parts Printing Preprocessing
TAOXING  Flat Flame Treatment Machine TX-HY800P  For  Flat Plastic Parts Printing PreprocessingTAOXING  Flat Flame Treatment Machine TX-HY800P  For  Flat Plastic Parts Printing PreprocessingTAOXING  Flat Flame Treatment Machine TX-HY800P  For  Flat Plastic Parts Printing PreprocessingTAOXING  Flat Flame Treatment Machine TX-HY800P  For  Flat Plastic Parts Printing PreprocessingTAOXING  Flat Flame Treatment Machine TX-HY800P  For  Flat Plastic Parts Printing Preprocessing
The working principle of the flat flame treatment machine is to use the flame plasma generated by the combustion of a specific gas-air mixture to activate the surface of plastics, glass and metals, so that inks, coatings, adhesives, etc. can better adhere to these materials.
CategoriesPrepress Processing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-HY800P
TypeFlame Treatment Machine
Rated voltage / light power220V/50Hz
Conveyor belt sizeWidth 800*Length 2000mm
Combustion gas8KGf / cm²
Speed regulation modeElectronic stepless speed regulation
Conveyor belt speed0-10m/min
Dimension2140 * 120 * 840mm
Flame width / height800mm / 260mm
FOB portShanghai or Ningbo
Terms of PaymentT/T
Update TimeOct 13,2024
Detail Information
Introduction
UV Curing Drying Mchine
The working principle of the flat flame treatment machine is to use the flame plasma generated by the combustion of a specific gas-air mixture to activate the surface of plastics, glass and metals, so that inks, coatings, adhesives, etc. can better adhere to these materials.
This flat flame treatment machine is mainly used for pre-printing treatment of plastic and metal molded parts, glass, and thin plates , and is suitable for a variety of industrial applications . Through flame treatment, the chemical properties of the material surface can be improved, and the quality of subsequent processing can be improved. The design of this equipment usually includes removable pneumatic and electrical housings, as well as a lightweight burner equipped with a piezoelectric igniter, which is easy to operate and flexible to use .
Specification
UV Curing Dryer
Main Parameters

Model: TX-HY800P
Flame width /height: 800mm/260mm
External combustion gas: Standard LPG
Combustion-supporting gas 8KGf / cm²
power supply: 220V/50Hz
Conveyor belt size: Width 800*Length 2000mm
Speed regulation mode: Electronic stepless speed regulation
Dimensions: 2140 * 120 * 840mm​

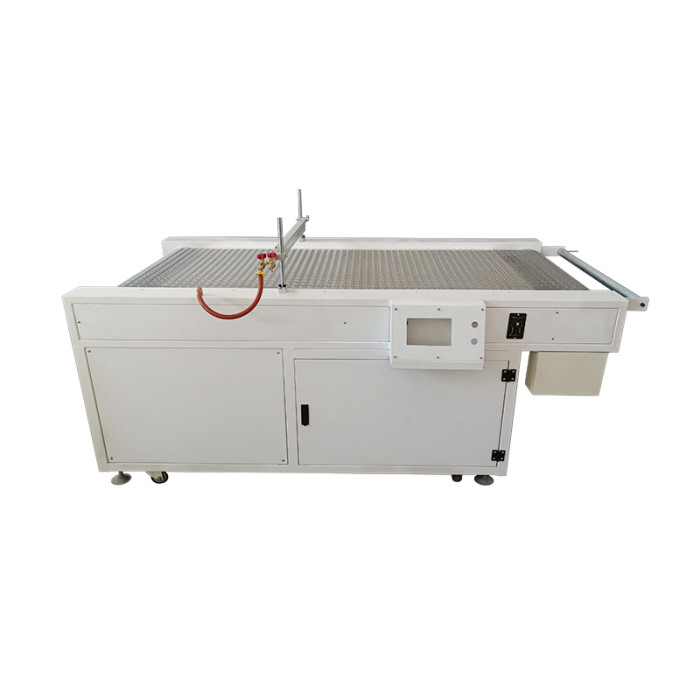

Appearance pictures
Screen Printing Flame Treatment Machine
Screen Printing Flame Treatment Machine
Screen Printing Flame Treatment Machine
Application
