TAOXING Screen Printing Flame Treatment Machine TX-200HY For Plastic Bottles

TAOXING Screen Printing Flame Treatment Machine TX-200HY For Plastic Bottles

TAOXING  Screen Printing Flame Treatment Machine TX-200HY  For Plastic Bottles
TAOXING  Screen Printing Flame Treatment Machine TX-200HY  For Plastic BottlesTAOXING  Screen Printing Flame Treatment Machine TX-200HY  For Plastic BottlesTAOXING  Screen Printing Flame Treatment Machine TX-200HY  For Plastic BottlesTAOXING  Screen Printing Flame Treatment Machine TX-200HY  For Plastic BottlesTAOXING  Screen Printing Flame Treatment Machine TX-200HY  For Plastic Bottles
This TX-200HY flame treatment machine is mainly used for flame treatment on the surface of various bottles and cylindrical PETand PP plastic bottle cup jars can. After the plastic products processed by this machine are printed, the ink can be more firmly attached to the printed objects.
CategoriesPrepress Processing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-200HY
TypeFlame Treatment Machine
Rated voltage / light powerAC220V / 3KW
Weight200 KG
ApplicationPlastic bottle
Combustion gascompressed air 8KGf/CM2
SpeedElectronic stepless speed regulation
Conveyor belt speed0-10m/min
Dimension2200×1200×700 mm
Flame width25~250mm
FOB portShanghai or Ningbo
Terms of PaymentT/T
Update TimeDec 14,2024
Detail Information
Introduction       UV Curing Drying Machine
UV Curing Drying Mchine
This TX-200HY flame treatment machine is mainly used for flame treatment on the surface of various bottles and cylindrical PETand PP plastic bottle cup jars can. After the plastic products processed by this machine are printed, the ink can be more firmly attached to the printed objects.
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
UV Curing Dryer
Main Parameters

Model: TX-200HY
Flame width: 25~250mm
Flame processor fuel: liquefied petroleum gas
Combustion gas: compressed air 8KGf/CM2
Power: 220V/50Hz
Speed: Electronic stepless speed regulation
Conveyor belt speed: 0-10m/min
Machine size: 2200×1200×700 mm
Features and Performance
1. This machine is equipped with a universal cone support, which can meet the requirements of general bottle mouths, and can be equipped with special sizes.
2.  The conveying part of the conveyor belt adopts a miniature speed regulating motor, and the speed is adjusted by stepless speed regulation to meet the different requirements of different workpieces.
3. The design of the flame nozzle and the combiner is advanced and unique, and the fuel utilization efficiency is high, which is an energy-saving product.
4. The electroplated aluminum alloy tank, cone support, and bright blue chain plate make this machine more beautiful and suitable.
5. The whole machine has novel structure, reasonable design, convenient operation, movable casters at the bottom, and convenient movement.
Appearance pictures

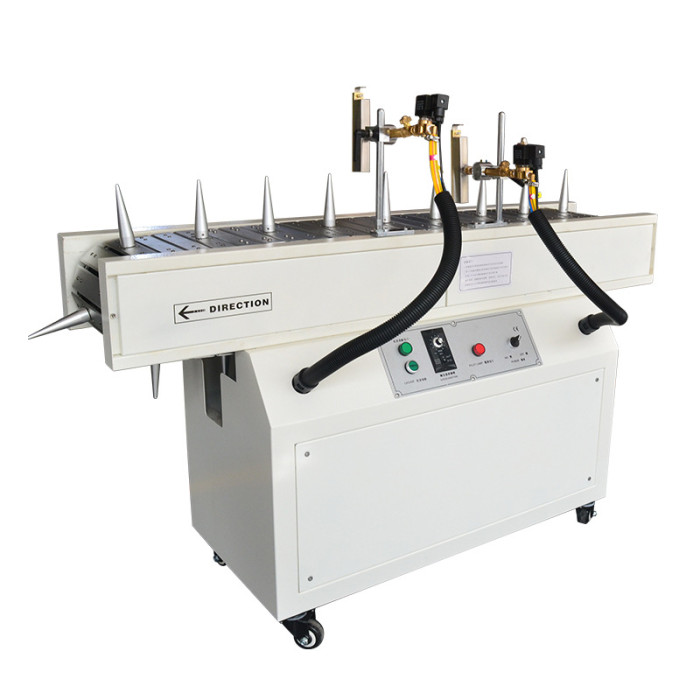

Screen Printing Flame Treatment Machine

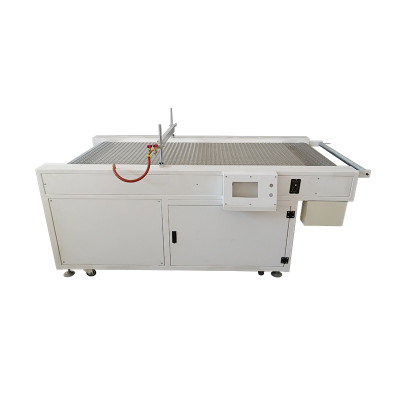

Screen Printing Flame Treatment Machine
Screen Printing Flame Treatment Machine
