Home / All / Screen Printing Machines / Semi-Automatic Flat Screen Printing Machine /

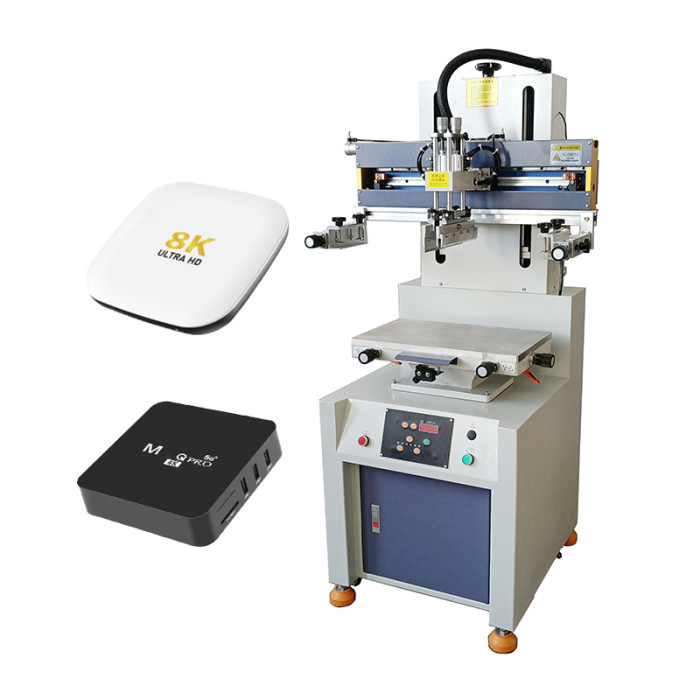

TX-3050V Vertical Pneumatic Flat Screen Printing Machine For Network Set-Top Box Logo
TX-3050V Vertical Pneumatic Flat Screen Printing Machine For Network Set-Top Box Logo
TX-3050V vertical flat screen printer is suitable for printing relatively high three-dimensional products such as cubic structure sheet metal chassis, square barrels, plastic/metal boxes, etc.
| Printing color | 1 color |
|---|---|
| Operating mode | semi-automatic |
| Printing speed | 1000pcs/h |
| Maximum mesh frame size | 600x1000mm |
| Printing size | 300*500mm |
| Voltage / power | 220V 380V/50HZ /2.1KW |
| Dimensions | 1230x950x1580mm |
| Printing Thickness | 25mm |
| Table size | 500x700mm |
| Gross weight | 495KG |
| Printing pressure | 4.0～6.0 kfg/c㎡ |
Detail Information
Application
This ertical flat screen printer is suitable for printing relatively high three-dimensional products such as cubic structure sheet metal chassis, square barrels, plastic/metal boxes, etc.
Specifications
|
Model: TX-3050SV
|
Printing area: 250*400mm
|
Platform size: 300*500mm
|
|
|
Printing thickness: ≤25mm
|
Printing accuracy: ±0.02mm
|
Maximum screen frame: 400*650mm
|
|
|
Printing pressure: 0.5-0.7Mpa
|
Power supply: 220V/50HZ/50W
|
Maximum printing speed: 1000pcs/h
|
|
|
Gross weight: 230(KG)
|
Machine size: 790*640*1550mm
|
Packing size: 850*650*1600mm |
|
Features
①Stable and reliable microcomputer control
②High-quality sensors
③Convenient and simple foot switch control
④International brand pneumatic components
⑤Advanced air filter
⑥Sturdy parts
⑦Wear-resistant imported shaft sleeves
⑧Independent printing and ink return speed control
⑨Simple operation and easy maintenance
Machine Details Display
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality,reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on
your requirements.
Q: What are your terms of payment?
A: We accept TT /LC/ PAYPAL / Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
