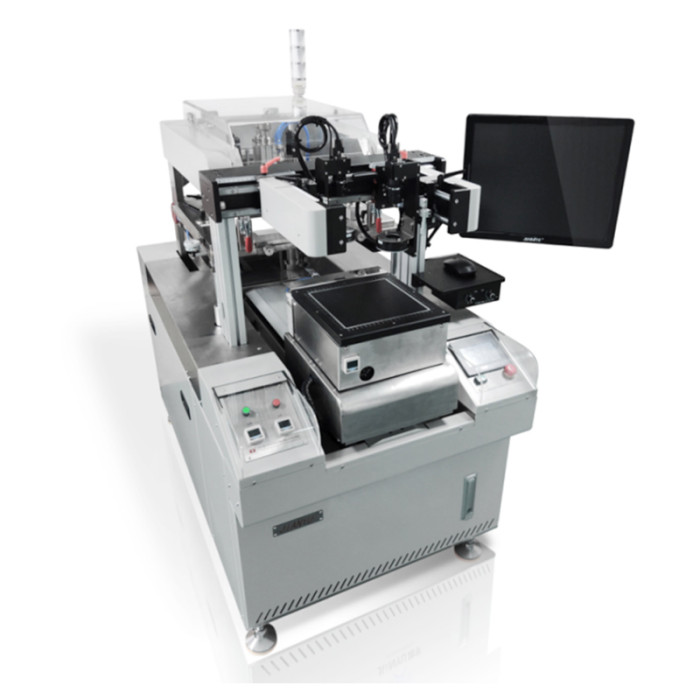

Taoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing Machine

Taoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing Machine

Taoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing Machine
Taoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing MachineTaoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing MachineTaoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing MachineTaoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing MachineTaoxing CCD Registratering Semi-Auto Thick Film Circuit Screen Printing Machine
CCD Semi-auto thick film circuit screen printing machine is suitable for thick film circuit.
CategoriesSemi-Automatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-CCD200A
Printing size150mm*150mm
FOB portShanghai or Ningbo
Terms of PaymentT/T
Download
Update TimeDec 14,2024
Detail Information
Introduction
Fully automatic CCD screen printing machine
Specifications

Printing size:150mm*150mm
Vacuum bed: 230*230 mm
Max screen printing size: O.D 320*320mm
Substrate height:5 mm
Printing accuracy:  0.02 mm
Printing thickness deviation:   0.002mm
Printing capacity:  800pcs/hour
Air source:  0.4~0.6Mpa
Voltage:  AC220V/50/60Hz
Power supply:  1kW
Weight: 370kg
Dimension: 123*740*134cm

Features

1. Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion.
2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement(Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
Detailed Images
Application
Membrane switch

mobile phone screen

Flexible circuit board

Why Choose  TAOXING
CCD fully automatic screen printing machine
Industrial Precision Screen Printing Equipment Manufacturing - TAOXING
TAOXING Specialty Screen Printing Machine is a leading manufacturer and supplier of specialty screen printing machines in China, with more than 10,000 devices installed and running in dozens of industries.

We have developed a number of patents and proprietary products, and continue to provide cost-effective and simple solutions for automating the flat and cylindrical screen printing production process in a variety of applications, including glass, electronics, bottles, ceramics, automobiles, printed advertising, etc.

TAOXING has been providing customers with professional screen printing machinery and its related equipment. With advanced technology and 20 years of experience, TAOXING ensures that every customer's needs are met.
Maintenance and Care Precautions
In order to ensure the stability and long-term performance of the equipment, regular maintenance is recommended, including cleaning the CCD camera, adjusting and replacing printing parts, checking and calibrating the registration system, etc.
Download document
High Precision CCD Screen Printer Registration Manual pdf

High Precision CCD Screen Printer Registration Manual pdf

FAQ
-How does a CCD visual system work?

Our CCD visual system uses advanced image processing technology to capture marks or specific patterns on printed materials through a camera, and then accurately locates each printed color layer to achieve high-precision registration.

- Why choose a CCD registered screen printer?

A CCD registered screen printer can significantly improve printing accuracy and production efficiency, especially in printing projects that require complex multi-color alignment. It can not only reduce scrap rates, but also save production time and labor costs.

What industries is this equipment suitable for?
