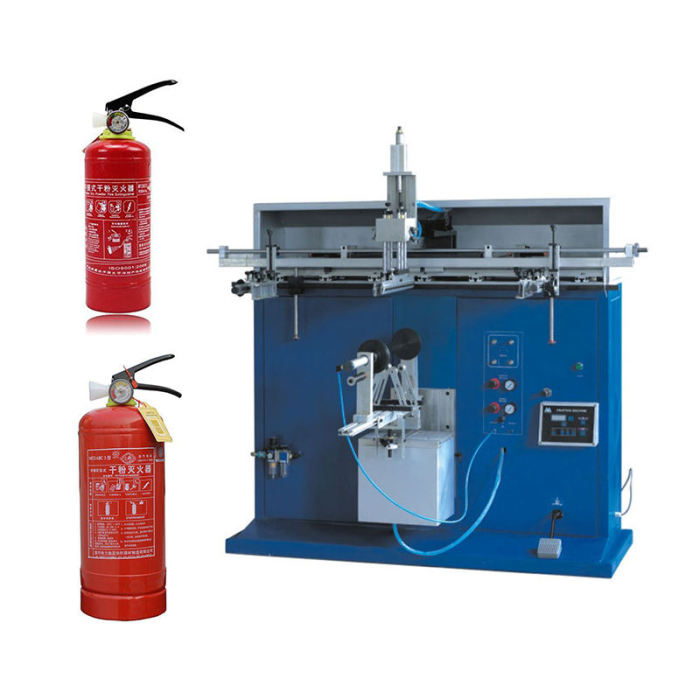

TAOXING Customized Fire Extinguisher Screen Printing Machine TX-800S
TAOXING Customized Fire Extinguisher Screen Printing Machine TX-800S
Our hot sale TX-800S cylindrical silk screen printing machine is suitabel to print images, clean buckets, paint barrels, plastic barrels and air products, fire extinguisher , such as the printing surface.
| Printing color | single color |
|---|---|
| Operating mode | semi-automatic |
| Max printing speed | 1200 pcs/h |
| Max printing size | 750*300mm |
| Max size of frame | 900*350mm |
| Max. diameter | 240mm |
| Max printing height | 250mm |
| Air consumption | 6 bars |
| Application area | Fire extinguisher |
| Dimensions(L*W*H) | 730*580*128mm |
| Weight | 240 KG |
Detail Information
Introductions TX-800S cylindrical fire extinguisher screen printing machine
Application
Our hot sale TX-800S cylindrical silk screen printing machine is suitabel to print images, clean buckets, paint barrels, plastic barrels and air products, fire extinguisher , such as the printing surface.
Main parameters
Model: TX-800S
Max size of frame: 900*350mm
Max printing: 750*300mm
Max. diameter: 240mm
Max printing speed: 1200pcs/hour
Max working piece height: 250mm
Air consumption: 6bars
Outside domension: 730*580*128mm
Features
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;w
3.Cylindrical/conical printing function available;
4.Auto ink squeegeeing and flooding, worktable elevating to assure easy operation and consistent print quality;
5.Printing stroke and speed are adjustable to meet different requirements;
6.Fine adjustment available on squeegee left/right position to make substrate alignment easy and exact;
7.Fine adjusted available on worktable up/down and plane angle, and frame front/rear, left/right and up/down with high printing precision.
Detail Images
Printing Samples
