TAOXING Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste Printing

TAOXING Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste Printing

TAOXING  Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste Printing
TAOXING  Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste PrintingTAOXING  Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste PrintingTAOXING  Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste PrintingTAOXING  Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste PrintingTAOXING  Semi-Automatic Flat Screen Printer TX-4050T For PCB Boards and SMT Patch Solder Paste Printing
This semi-automatic flat screen printing machine is suitable for stencil printing of products such as PCB and SMT solder paste in the electronics industry.
CategoriesSemi-Automatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-4050T
FOB portShanghai or Ningbo
Terms of PaymentT/T
Download
Update TimeDec 14,2024
Detail Information
Introduction
Fully automatic CCD screen printing machine
Application
This semi-automatic flat screen printing machine is suitable for stencil printing of products such as PCB and SMT solder paste in the electronics industry.

The semi-automatic paste screen printer boasts efficiency gains with automated processes, ensuring precise application of solder paste. It enhances productivity, reduces human error, and adapts easily to diverse PCB layouts, making it a cost-effective solution for electronics manufacturing.

Specification
Product name:  Semi-automatic solder paste printer
Product model:  TX-4050T
Printing table area:   500×700mm
Screen frame suitable size:  370*470-550*900mm
Suitable substrate size:   15*15-400*340mm
Scraper speed:  0-100mm/s
Substrate thickness:  0.3-5mm
Printing accuracy:  L±10mm
Printing position fixation:  PCB Outer Or Pin Positioning
Plate fine-tuning:  ±10mm
Machine repeatability:   ±0.02mm
Minimum spacing:  0.35mm
Air pressure:  4-6kgf/cm2
Power supply:  single-phase 220V, 5060HZ, 100W
Machine size:  L900×W105×H1650mm
Machine weight:  about 250kg
Main performance

(1) The suspended scraper system makes printing more flexible. The scraper can float up and down freely and automatically adjust to the level of the steel mesh;
(2) The scraper seat can be adjusted forward and backward to select the appropriate printing position;
(3) The combined printing table has fixed grooves and PINs, which are easy to install and adjust, and are suitable for single- and double-sided printing;
(4) The workbench is equipped with a honeycomb aluminum plate, support strips, and a pin with a reference hole positioning pin structure, which is convenient for single- and double-sided printing of PCB boards of different specifications;
(5) It has automatic, semi-automatic and There are three working states of inching. Inching is mainly convenient for trial printing and adjustment at the beginning;
(6) The calibration method adopts steel mesh movement and combines the X, Y, and Z of printing (PCB), which makes correction and fine-tuning convenient and fast;
(7) Industrial product computer PLC control and human-machine interface are simple, convenient and more suitable for human-machine dialogue;
(8) It has automatic counting function, which is convenient for production output statistics;
(9) The scraper angle is adjustable, suitable for steel scrapers and rubber scrapers;
(10) The printing machine speed human-machine interface digital display can be arbitrarily adjusted and controlled digitally.

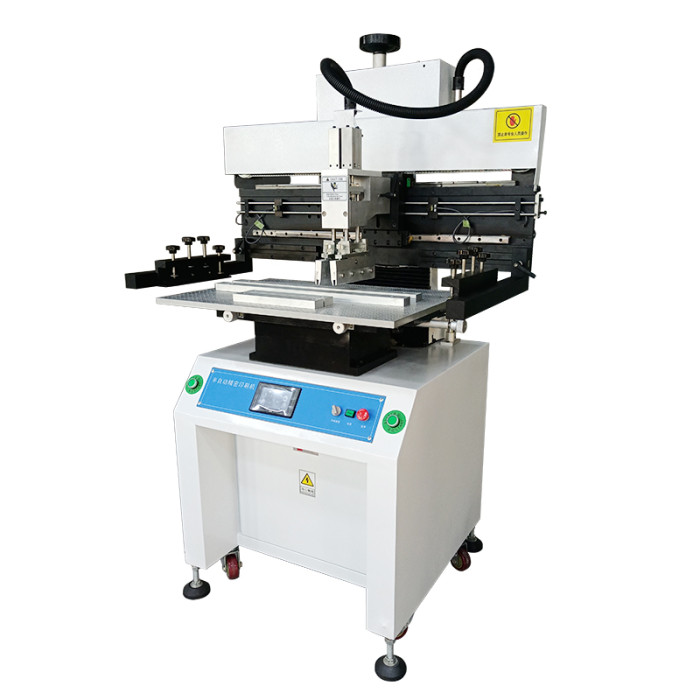

Machine image
Printing samples
