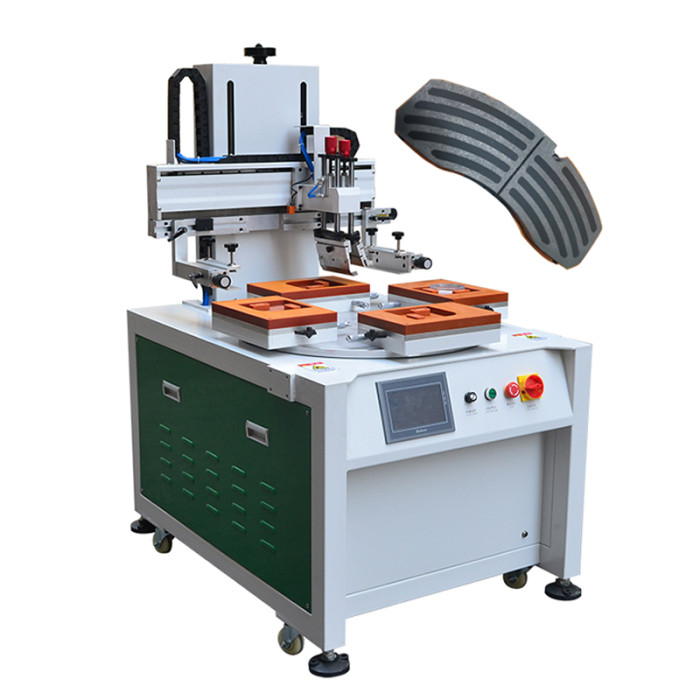

Brake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FT

Brake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FT

Brake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FT
Brake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FTBrake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FTBrake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FTBrake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FTBrake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FT
Screen printing of various thicknesses, specializing in screen printing of acrylic, glass, plastic panels and other products
CategoriesSemi-Automatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-2030FT
Max Dia∮240mm
Fixture diameter∮360mm
Fixture height100mm
Maximum printing thickness120mm
Precision platform±0.03mm
Precision trimming range±10mm
Printing speed1200-1500 pcs/h
Applicable air6-8kg/cm2
WeightAbout 400kg
Ground to the bottom of the disc730mm±10mm
Dimensions720*1000*1950mm
FOB portNingbo
Terms of PaymentT/T
Update TimeOct 13,2024
Detail Information
Introduction
Fully automatic CCD screen printing machine
Application
Screen printing of various thicknesses, specializing in screen printing of acrylic, glass, plastic panels and other products.

Specification
Model: TX-2030P-4T
Max Dia: ∮240mm
Fixture diameter: ∮360mm
Fixture height: 100mm
Maximum printing thickness: 120mm
Precision platform:±0.03mm
Precision trimming range: ±10mm
Printing speed: 1200-1500time/H
Applicable air: 6-8kg/cm2
Weight:About 400kg
Ground to the bottom of the disc:730mm±10mm
Features

★Main performance
1. Three-station turntable design,Reduce printing waiting time,effectively improve production.
2. Table rotation mechanism is Taiwan Precision 80DT divider,Accurate positioning and fast speed,No noise and vibration,,long service life.
3. The rotating chassis adopts aluminum alloy plate disk,The fixture discs are all made of hard oxidation special process, which is precise and durable, easy to clean;
4. Up and down lifting and left and right printing are controlled by servo motors,The printing speed is adjustable,With imported precision double linear guide,Smooth and precise operation;
5. PLC control+ LCD ,Touch screen operation panel,Sensitive operation,Perfect function;The whole machine is equipped with multiple protection systems to ensure safe and reliable operation;
6.  Left and right stroke photoelectric switch limit, manual adjustment of screen printing stroke;
7. The scraper constant pressure device ensures the pressure in the printing is stable;
Machine image
Printing samples
