TAOXING Desktop Semi-Automatic Oblique Arm Screen Printing Machine TX-1520XB for Metal Nameplate Printing
TAOXING Desktop Semi-Automatic Oblique Arm Screen Printing Machine TX-1520XB for Metal Nameplate Printing
This mini screen printing machine is suitable for flat printing of glass, nameplates, stickers, credit cards, ceramic decals, wooden toy puzzles and PCB, SMT solder paste, membrane switches and other products in the electronics industry. It is also suitable for gold and silver cardboard and metal sheets. , PVC, etc. as the base material.
| Printing color | Single color |
|---|---|
| Operating mode | Semi-automatic |
| Printing speed | 1000 pcs/h |
| Printing size | 150*200mm |
| Max Frame Size | 250*300mm |
| Table size | 120*200mm |
| Power | 220V / 2.2KW |
| Printing pressure | 4.0~6.0 kfg/c㎡ |
| Dimension | 600*390*580mm |
| Printing height | 80mm |
| Printing Thickness | ≤50mm |
| Weight | 28KG |
Detail Information
Introduction of Desktop Oblique Arm Flat Screen Printing Machine
Application:
Suitable for flat printing of glass, CD, nameplates, stickers, credit cards, ceramic decals, wooden toy puzzles and PCB, SMT solder paste, membrane switches and other products in the electronics industry. It is also suitable for gold and silver cardboard and metal sheets. , PVC, etc. as the base material.
Features
1.Microcomputer control circuit, printing and screen opening and closing are driven by independent cylinders.
2.The switching of printing/re-inking carriage is driven by a Taiwanese brand air cylinder.
3.There are three modes of manual/semi-automatic/full-automatic, printing indirect time digital control.
Specification
Model | TX-1520XB | |||||||
Table Size | 120X200mm | |||||||
Substrate Thickness | ≤50mm | |||||||
Max Printing Area | 150X200mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 250*300mm | |||||||
Stacking Height | 80mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 220V / 50HZ | |||||||
Printing pressure | 4.0～6.0 kfg/c㎡ | |||||||
Machine Size | 600mm*390mm*580mm | |||||||
Machine Weight | 28KG | |||||||

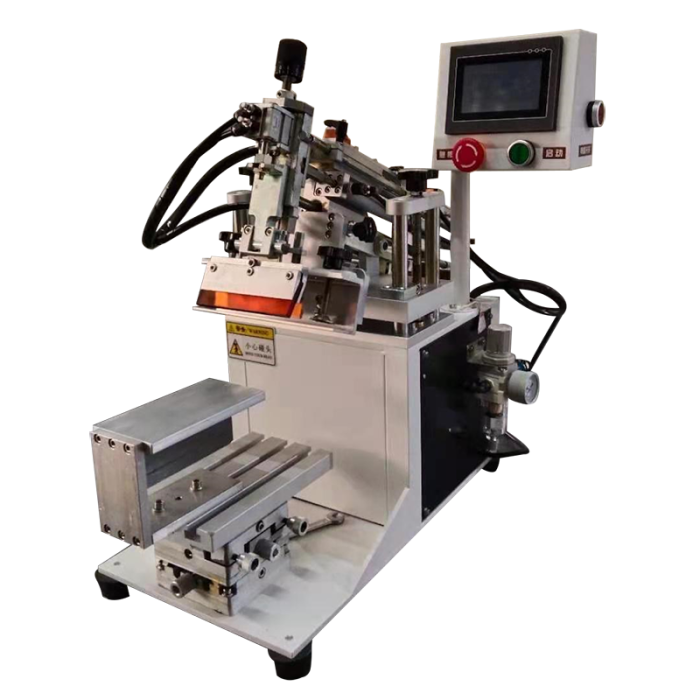

Machine Image
Application of Oblique Arm Flat Screen Printing Machine
Metal nameplate
IC card
Arc lighters
