Taoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plate

Taoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plate

Taoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plate
Taoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plateTaoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plateTaoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plateTaoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plateTaoxing Small Desktop Flat Screen Printing Machine TX-2030S for Name plate
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.
CategoriesSemi-Automatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-2030S
Printing Thickness≤80mm
Max printing area200*300mm
Air pressure4.0~6.0 kfg/c㎡
Size of printing table200*400mm
Rated voltage/Power220V/50HZ/400W
Max size of screen frame400*600mm
Printing speed1000pcs/h
Package size1000*680*680mm
Weight100KG
FOB portNingbo
Terms of PaymentT/T
Update TimeOct 13,2024
Detail Information
Introduction
Fully automatic CCD screen printing machine
Application
The small desktop screen printing machine is suitable for precision flat screen printing of various papers, scratch cards, glass, self-adhesives, single-sided, double-sided, multi-layer circuit (PCB), liquid green oil, cold light (EL) and flexible circuit boards.

Specification
Model:    TX-2030S
Printing Thickness:   ≤80mm
Max printing area:  200*300mm
Air pressure:  4.0~6.0 kfg/c㎡
Size of printing table:  200*400mm
Rated voltage/Power:   220V/50HZ/400W
Max size of screen frame:  400*600mm
Printing speed:   1000pcs/h
Packing size: 1 000*680*680mm
Weight:  100KG
Main performance

1. Using a microcontroller in conjunction with a touch sensitive panel to compile action programs; The control panel is clear and easy to operate, displaying in both Chinese and English.
2. A four digit counter that counts the number of prints; Clearly display the current production volume.
3. Fully cast aluminum body with a surface coated with metal paint;
4. Double column lifting structure, stable and high-precision;
5. Pneumatic screen washing device; Simple and convenient, no need to manually lift the print head, one click screen cleaning.
The up and down/left and right drive modes of the grid frame/print head are both cylinder driven.
7. Adjustable left and right travel, photoelectric switch limit;
8. The angle of the scraper/ink return blade can be adjusted freely;
9. Scraper constant pressure device to ensure stable pressure during printing;
10. Fine adjust the rotation angle of the workbench to the front, back, left, and right;
11. The mesh frame can be adjusted back and forth, left and right, horizontal, and high and low;
12. Suction stainless steel countertop, capable of adsorbing various thin film products;
13. Equipped with Taiwan CEC hydraulic buffers on the top, bottom, left, and right sides, effectively eliminating printing vibrations;
14. The whole machine runs fast, smoothly, and with low noise;
15. Action mode selection: fully automatic | semi-automatic | manual;
16. Operation mode: panel | foot switch; Two ways of operation

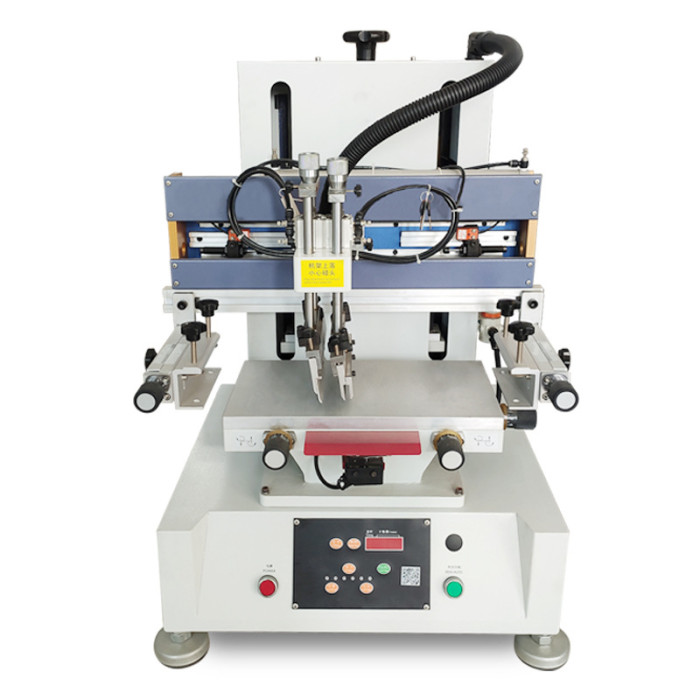

Machine image
Printing samples
Plastic Labels
Ceramic substrate
Metal nameplate
