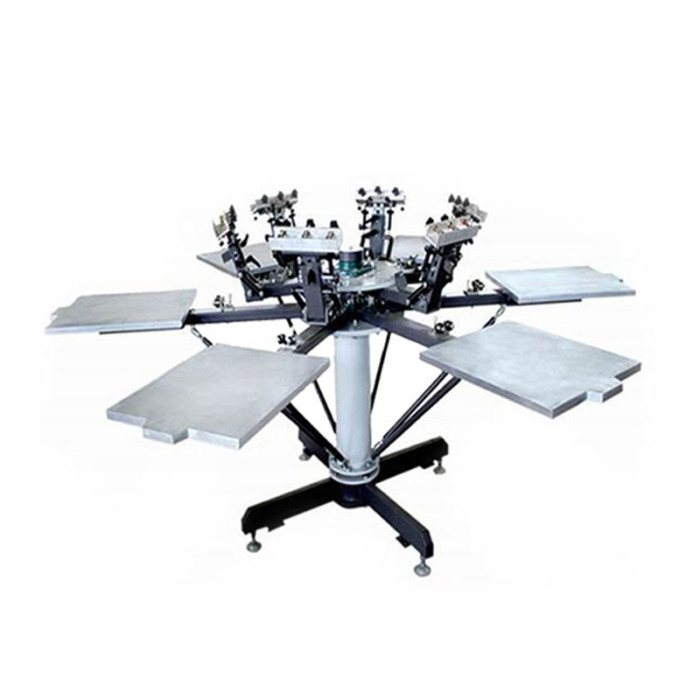

Six Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G for Sale

Six Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G for Sale

Six Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G  for Sale
Six Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G  for SaleSix Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G  for SaleSix Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G  for SaleSix Color 6 Stations Manual T Shirt Screen Printing Machine TX-YH-6G  for Sale
6 color 6 stations T shirt screen printing machine is suitable for fabric register printing, conquer the disadvantages of space-wasting during printing, manpower wasting, verbose to do overprinting etc. And it is also widely used in printing T shirt, ready-made clothes, backpack, cloth, towel, leather and other materials which are easy to be out of shape.
CategoriesManual Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-YH-6G
ModelTX-YH-6G
FOB portNingbo
Terms of PaymentT/T
Download
Update TimeDec 14,2024
Detail Information
Introduction
Fully automatic CCD screen printing machine
6 color 6 stations T shirt screen printing machine is suitable for fabric register printing, conquer the disadvantages of space-wasting during printing, manpower wasting, verbose to do overprinting etc. And it is also widely used in printing T shirt, ready-made clothes, backpack, cloth, towel, leather and other materials which are easy to be out of shape.
Its'printing base and screen can be rotated, In addition, the screen can be regulated backward and forward, right and Left, so the position is accurate and easy during the overprinting.
 This machine is economical multi-color manual screen printer, which is suitable for T shirt, cut-parts, knitted sweater, umbrella, leather etc. printing, and can use heat set ink, cream, rubber cement and other printing inks.
Main performance

① Positioning method: three-side positioning or hole positioning.
② Adjustment method: manual fine adjustment.
③ Adjustment direction: X direction, Y direction, Z direction.
④ The screen clamp that fixes the screen frame can be freely extended and retracted, suitable for large and small screen printing, one machine for multiple uses.
⑤ The screen clamp head can be raised and lowered, suitable for substrates of different thicknesses.
⑥ Five adjustment devices, fast and accurate adjustment of the plate.
⑦ Equipped with a safety automatic protection device.
Specification
Model
TX-YH-6G
Table Size
500*600mm
Substrate Thickness
0-25 mm
Max Printing Area
400×500mm
Productivity
400 pcs/h
Max Frame O/D Size
600*650mm
Stacking Height
300mm
Worktable Displacement
±5mm
Air Exhaustion
15L/min
Machine Dimension
2800*2800*1100mm
Machine Weight
220kg
Machine image
