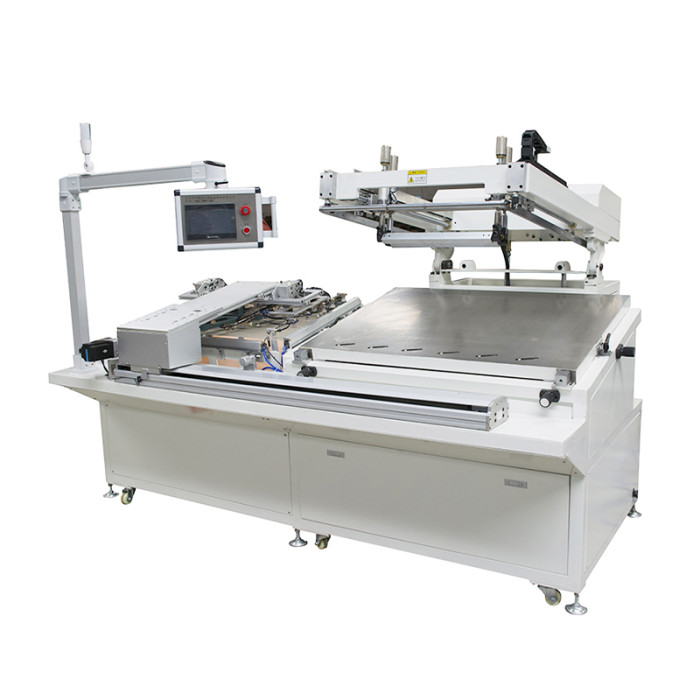

TAOXING Automatic Loading Oblique Arm Flat Screen Printing Mahine for Self-Adhesive Label Film Printing
TAOXING Automatic Loading Oblique Arm Flat Screen Printing Mahine for Self-Adhesive Label Film Printing
This TX-XB70100 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
| Printing color | 1 color |
|---|---|
| Operating mode | semi-automatic |
| Printing speed | 600pcs/h |
| Printing size | 700*1000mm |
| Max Frame Size | 1000*1400mm |
| Table size | 800*1100mm |
| Power | 2.2KW/380V |
| Air Pressure | 0.5-0.6Mpa |
| Outside Dimension | 1900×1450×1400mm |
| Weight | 1600 KG |
Detail Information
Introduction of Oblique Arm Flat Screen Printing Machine
Application:
This TX-XB70100 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
Features:
1).Oblique arm structure. Independent drive of printing arm.
2).Vacuum stainless steel printing table and powerful vacuum pump.
3).Micro registration handle in horizontal and vertical direction make more precision and convenient color register.
4).Variable frequency drive system drives the printing head, respectively digital control of printing and ink reclaiming speed.
Specification of Oblique Arm Flat Screen Printing Machine
Model | TX-XB70100 | |||||||
Table Size | 800x1100mm | |||||||
Substrate Thickness | 0-25 mm | |||||||
Max Printing Area | 700×1000mm | |||||||
Printing speed | 600 pcs/hour | |||||||
Maximum screen frame size | 1000*1500mm | |||||||
Maximum print Length: | 1000mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 220V/50HZ /2.1KW | |||||||
Printing pressure | 0.5-0.6Mpa | |||||||
Machine Dimension | 1900×1450×1400mm | |||||||
Machine Weight | 1600KG | |||||||
Application of Oblique Arm Flat Screen Printing Machine
