Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350

Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350

Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350
Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350Industrial Drying Oven Hot air screen printing drying cabinet Screen printing dryer TX-KX1350
Hot Air Circulate Screen Printing Drying Oven for circuit board, PCB ect .It suits for dry Circuit Board, plastic, PCB, Ceramic color paper, Metel nameplate , ect and other product's roast, after printing.
CategoriesVertical Oven
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-KX1350
TypeDrying Oven
VoltageAC 380V/ 50HZ 10KW
Core ComponentsPLC
Heating MethodElectric Heating
MaterialSUS304
AdvantageEnergy Conservation
Temperature rangeRT~200℃/300℃
Speed1-10m/min
TRAY SIZE650*1000mm *50 floors
Weight420 KG
Dimension1550*1400*2350mm
FOB portNingbo
Terms of PaymentT/T
Update TimeDec 14,2024
Detail Information
Introduction
UV Curing Drying Mchine
Hot Air Circulate Screen Printing Drying Oven for circuit board, PCB ect
It suit for dry Circuit Board, plastic, PCB, Ceramic color paper, Metel nameplate , ect and other product's roast, after printing.
Stainless steel material inner wall with thicken Heat insulation asbestos inside
forced air circulation for faster drying
Specification
UV Curing Dryer
Name: Precision drying oven
Model: TX-KX1350
Inner size: 900*1200*1600 (drying rack size)
Parameter: Temperature (0-180°C)
Material:
1. Crust:adopt1.2MM thickness cold-rolled steel sheet,the surface is Paint drying.
2. workshop:adopt 1.MM stainless steel.
3. the bottom is flat,with two groove,make it convenient to let drying frame in and out.

Features and Performance
1. Stainless material prevents internal corrosion and allows long durability
2. PID temperature control allows constant temperature distribution
3. Side- to-side circulation of hot air maintains constant temperature distribution in the vertical direction
4. Has a filter mounted at the air inlet
5. Temperature display function (high, medium and low)
Technical Parameter
Temperature control sect:
1. working temperature:normal temperature-150°C.
2.Max. temperature: 180°C.adjustable .
3.temperature difference in the oven:±3°C%.

Electric sect:
1. working voltage:380V 50HZ.
2. digital intelligence temperature control meter,PID adjust.
3. AC contactor controlled.
5. Constant temperature timing setting.
6. alarm function.
7. low-voltage apparatus adapts name brand"Chint"or "Delix".

Heating sect:
1. heating mode:set evenly by two sides.
2. heating component:stainless heating rod .
3. heating power:18KW.

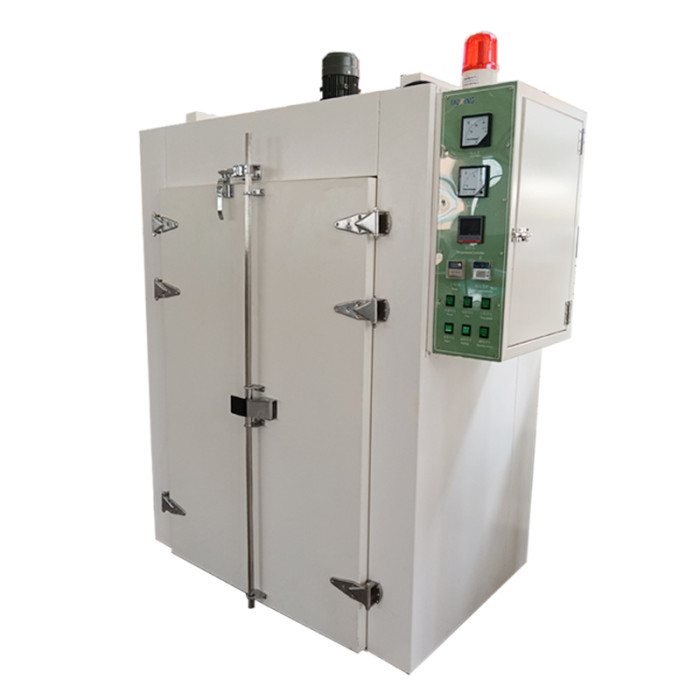

Appearance pictures
Application
Glass Panel
Flexible circuit board
Membrane Switch
