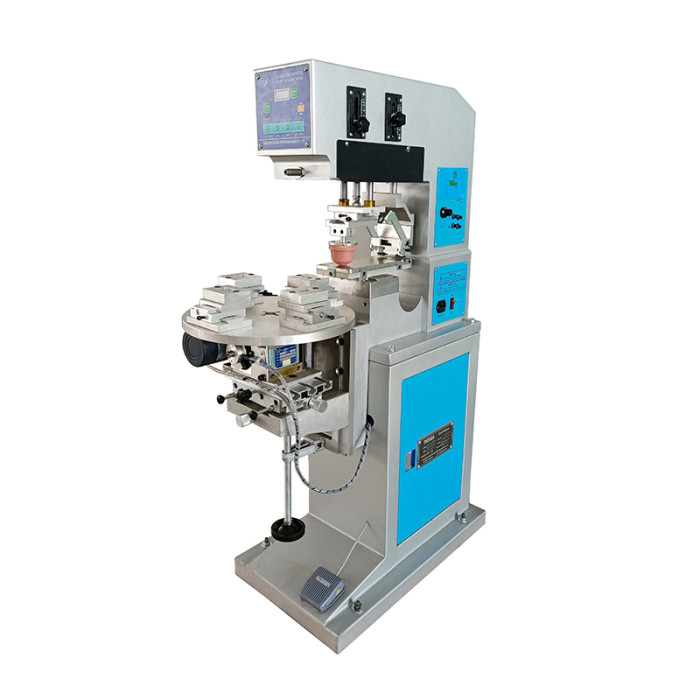

Semi-Automatic Four-Station Rotary Table Single-Color Pad Printing Machine
Semi-Automatic Four-Station Rotary Table Single-Color Pad Printing Machine
This rotary monochromatic pad printer is suitable for precision printing on flat, curved and irregular surfaces with relatively small printing areas on materials such as metal, glass, ceramics, plastic, wood and leather.
| Plate size | 225×100mm |
|---|---|
| Max Printing size | 80*120mm |
| Max printing Speed | 1000pcs /hour |
| Drive | Electro-Pneumatic |
| Power | 220V /110V /50Hz 50w |
| Compressed Air | 5-6MPA |
| Dimensions (L*W*H) | L 840* W 540* H1470mm |
| Weight | 118kg |
Detail Information
Application
⦁ Electric, switch, socket, fuse, circuit breaker, button, knob
⦁ Plastic; Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses.
⦁ Promotional items; hotel eqipments, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle
Product Parameters
Plate size： 225×100mm
Oil cup diameter: 90mm
Max Printing size：80*120mm
Max printing Speed：1000pcs /hour
Drive: Electro-Pneumatic
Power: 220V/110V 50W
Compressed Air: 5-6MPA
Dimensions (L*W*H): 840*540*1470mm
Weight: 118KG
Main Features
①The microcomputer controls each function action, the operation is simple and convenient.
②The oil roller is inked, easy to assemble and disassemble and clean.
③ There is a five-digit automatic counter.
④The machine structure adopts high-quality aluminum alloy, which is light and strong.
⑤ Independent up and down stroke and speed adjustment of the plastic head.
⑥Automatic balance scraper, clean and clean ink.
⑦The front and back lines can be empty without dropping the glue head to prevent the ink from drying
out when it stops for a while.
⑧A model that can complete a single product's two colors at a time. The shuttle table has accurate color registration, saves operating procedures without positioning, and increases work efficiency. The two-color shuttle pad printing machine can also be used as a monochrome pad printing machine or a monochrome double-head pad printing machine. Used, is
an enhanced version of the monochrome printing machine.
