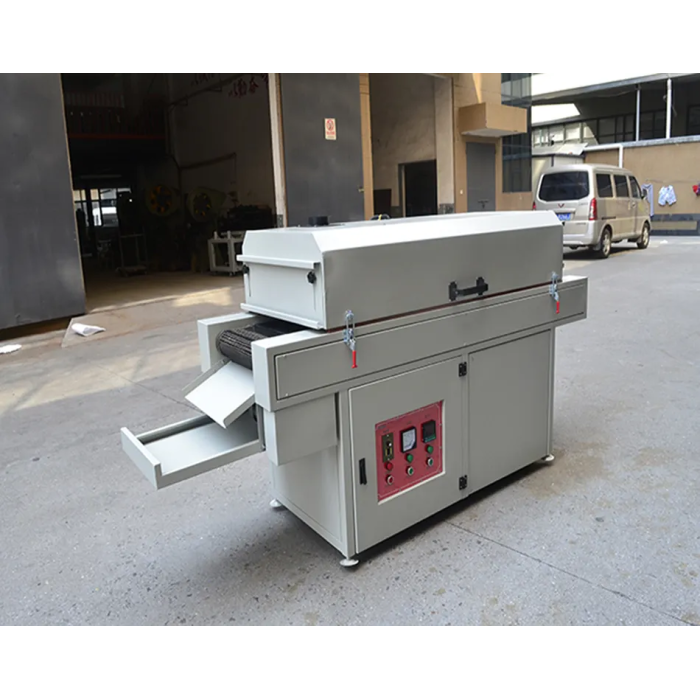

Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600

Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600

Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600
Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600Customized IR Hot Air Drying Tunnel for Screen Printing Line TX-IR600
IR drying tunnel machine widely apply for screen printing. electronic products, plastic tube, gloss bottle.
CategoriesIR Drying Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-IR600
TypeDrying Oven
VoltageAC 380V/ 50HZ 3-Phase
Belt width400mm
Input area500mm
Heating area2m each section, customized
Cooling area1 m or customized
Output Zone0.5m or customized
Speed1-10m/min
Max temperature250 ℃
Max belt Speed10 Mtr/ Min
Weight260 KG
Heating MethodElectric Heating
MaterialSUS316, SUS316L, Ti, Other
Dryig processContinuous Automatic Drying
AdvantageLow Consumption High Efficiency
FOB portShanghai or Ningbo
Terms of PaymentT/T
Update TimeDec 14,2024
Detail Information

Introduction   IR Drying Tunnel Machine

UV Curing Drying Mchine
IR Conveyor Belt Drying Tunnel Machine offered find application in the field of screen printing and are extensively used for
table prints. Being precision engineered, these are based on advanced process technology so as to deliver long working life. Here,the provision of digital display with digital keypad is also provided with reduced energy costs through use of high volume circulation blower.
The general features comprise air handling, use of forced airflow accelerating drying/curing processes, use of high-volume circulation blower that reduces energy costs, separate dedicated blowers for achieving circulation & exhaust control center.
Further, the system also comes with digital keypad with digital display, air-cooled electrical control cabinet for ensuring long life of electrical components as well as conveyor belt made of imported anti static heat-resistant, coated fiberglass coating so as to provide maximum process efficiency standards.

Specification

UV Curing Dryer
Application: IR drying tunnel machine widely apply for screen printing, electronic products, plastic tube, gloss bottle.

Model :TX-IR600
Width of belt: 400mm
Power/set:3KW/set
Outside size: according to the demand for custom
Working Power:AC 380V 50HZ
Gross weight: 300kg

Features and Performance

1. Intelligent temperature control system,easy operation
2. adopt hot circulating system to save energy
3. Adjustable belt speed and tunnel temperature controls.
4.customized size

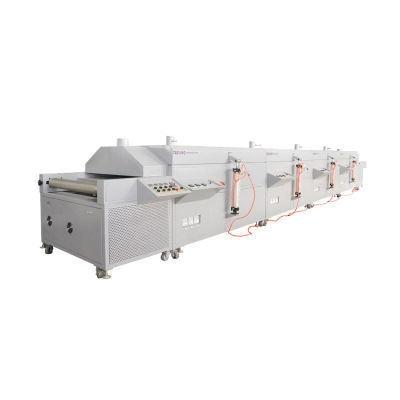

Appearance pictures

Application

Glass Panel
Flexible circuit board
Membrane Switch
