Fully Automatic CCD Registering Screen Printing Machine Equipped with CCD Camera System and Movable Printing Table

Fully Automatic CCD Registering Screen Printing Machine Equipped with CCD Camera System and Movable Printing Table

Fully Automatic CCD Registering Screen Printing Machine  Equipped with CCD Camera System and Movable Printing Table
Fully Automatic CCD Registering Screen Printing Machine  Equipped with CCD Camera System and Movable Printing TableFully Automatic CCD Registering Screen Printing Machine  Equipped with CCD Camera System and Movable Printing TableFully Automatic CCD Registering Screen Printing Machine  Equipped with CCD Camera System and Movable Printing TableFully Automatic CCD Registering Screen Printing Machine  Equipped with CCD Camera System and Movable Printing TableFully Automatic CCD Registering Screen Printing Machine  Equipped with CCD Camera System and Movable Printing Table
Fully automatic CCD registering screen printing machine is suitable for precise screen printing capacity type touch panel, ITO conductive glass, ITO conductive film, blood sugar tester, EL panel, etc.
CategoriesAutomatic Flat Screen Printing Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-CCD4060
ModelTX-4060CCD
Max printing area400X600mm
Table size500x700mm
Printing Speed400Pcs/h
Max screen frame750x1080mm
Stacking Height300mm
Work-Piece Thickness0.1-2mm
Machine Weight2200kg
Worktable Displacement±5mm
Power SupplyAC380V/50Hz
Machine Dimension3500*1100*2050mm
Machine Weight950KG
FOB portNingbo
Terms of PaymentT/T
Download
Update TimeDec 14,2024
Detail Information
Introduction Fully Automatic CCD Registering Screen Printing Machine

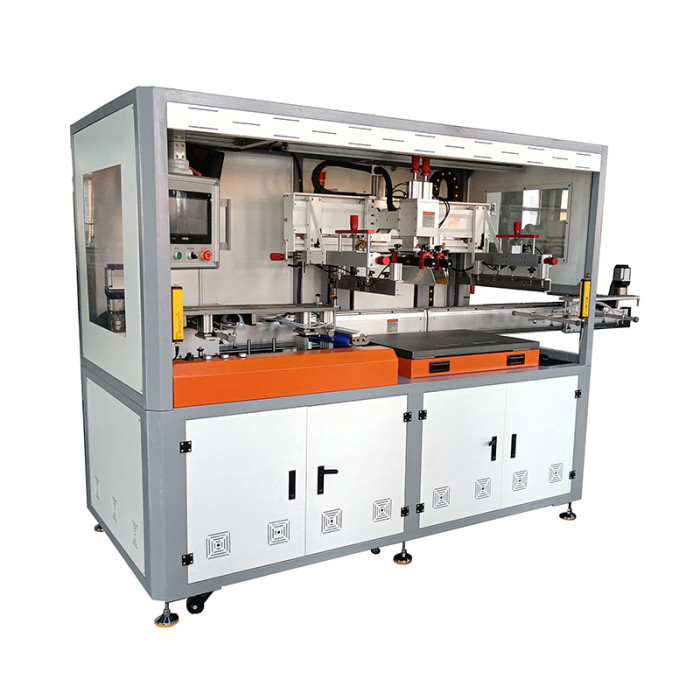

Fully automatic CCD screen printing machine
Automatic CCD image registration screen printer for highest demands, equipped with CCD camera system and movable printing table for high-quality printing on flat materials such as EL foils, LGP boards, BEF films, touch screens, membrane switches, flexible printed circuits, etc.
* For product and process development
* Designed for selective coatings such as printed electronics, solar cells, RFID and organic electronics
* Precise alignment of single and multi-layers
* Minimal setup time for screen, substrate and print media
* Simple parameter control and precise documentation
Features
* Rapid lifting and lowering: adopting the best electric and pneumatic transmission mode, special balanced loading, rapid and smooth lifting and lowering, and precise positioning.
* Electromagnetic adsorption positioning: the screen is tilted and lowered to the limit position of the margin, and locked by the electromagnetic fixing device to resist the heavy printing pressure.
* Precise positioning: German gear motor + rotating arm drives up and down, with rapid, stable and quiet movement, precise positioning, and can ensure long-term operation.
* Uncovering function: the guide cylinder drives the uncovering device to avoid sticking after printing.
* Vacuum device: equipped with a powerful vacuum motor, the suction force can be adjusted according to the needs of the substrate.
* Digital control: HMI digital control is adopted, and multiple functions and operating parameters can be preset.
* Standardized management: 100 sets of memory modules can be named and numbered individually, quickly saved and retrieved, and convenient for standardized management of different production processes.
* Safety protection: equipped with emergency stop safety rod, safety pressure rod switch, and safety lifting cylinder, which are triggered when the screen is lowered, and the screen structure automatically rises slowly to the original position and releases the load weight, and careful protection ensures the safety of operators
Specification   Fully automatic CCD registering screen printing machine
Model
TX-CCD4060
Table Size
500x700mm
Substrate Thickness
0.1-2mm
Max Printing Area
400*600mm
Min Printing Area
400x400mm
Productivity
400 pcs/h
Max Frame O/D Size
750x1080mm
Stacking Height
300mm
Worktable Displacement
±5mm
Power Consumption
5.5kW
Air Exhaustion
15L/min
Machine Dimension
3500*1100*2050MM
Machine Weight
950kg
Details picture
Application  Fully automatic CCD registering screen printing machine
Membrane switch
Membrane Switch
mobile phone screen
mobile phone screen
Flexible circuit board
Flexible circuit board
