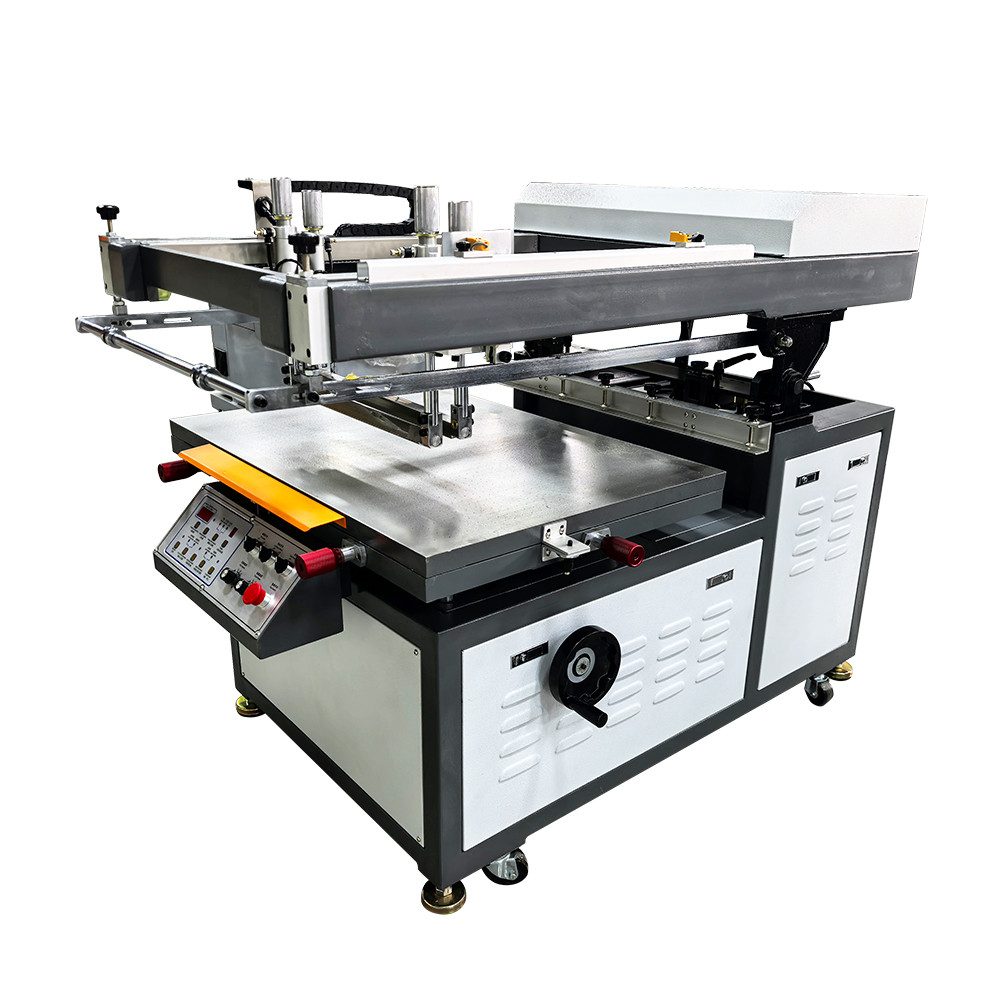

Why is diagonal arm screen printing machine the preferred choice for curved printing? Analyze its structural advantages
The multidimensional adjustment capability of the inclined arm structure is the core advantage in dealing with surface printing. The inclined arm component adopts a cantilever design, which achieves three-dimensional movement of the printing head in space through a dual axis rotating joint. The rotation angle covers -45 ° to+90 °, and can adapt to various workpieces from shallow arc to deep cavity surface. The core transmission component adopts high-precision ball screws, combined with pre tightened nuts to eliminate gaps, so that the displacement accuracy of the printing head is controlled within 0.01mm. This structural feature of "rigid support+flexible adjustment" allows the equipment to maintain the stability of the printing process while adjusting its posture in real-time according to the curvature of the surface, solving the inherent limitations of traditional flat screen printing machines with "fixed angles".
The curved surface fitting compensation mechanism further strengthens the structural advantages. The floating printing base integrated at the end of the inclined arm achieves ± 3mm micro displacement compensation through three sets of spring dampers. When the printing head contacts the curved workpiece, it can automatically adapt to surface undulations and maintain uniform pressure. Compared to traditional fixed printing bases, this structure reduces the pressure fluctuation range of curved printing from ± 5N to ± 1N, and improves ink adhesion uniformity by 40%. The practice of a certain ceramic enterprise shows that using the inclined arm screen printing machine with this structure, the pass rate in curved porcelain bottle printing has jumped from 72% to 96%.
The modular changeover design enhances the adaptability of surface printing. The printing table and inclined arm execution end of the equipment both use quick locking mechanisms, which shorten the adjustment time from 40 minutes in traditional equipment to 10 minutes when replacing fixtures or screens of different specifications. For special curved surfaces such as spherical, conical, and cylindrical shapes, a dedicated copying printing head can be equipped. For example, when printing golf balls, a hemispherical screen with a synchronous rotating mechanism can be used to achieve seamless 360 ° printing on the spherical surface. The structural characteristic of "one machine with multiple capabilities" allows a single device to meet the production needs of multiple types of curved workpieces, greatly reducing the equipment investment cost of enterprises.
It is precisely these targeted structural innovations that enable the oblique arm screen printing machine to demonstrate irreplaceable advantages in curved surface printing. It not only breaks through the process limitations of traditional equipment, but also achieves dual improvements in efficiency and accuracy through structural optimization, becoming the undisputed first choice equipment in the field of curved surface printing.
